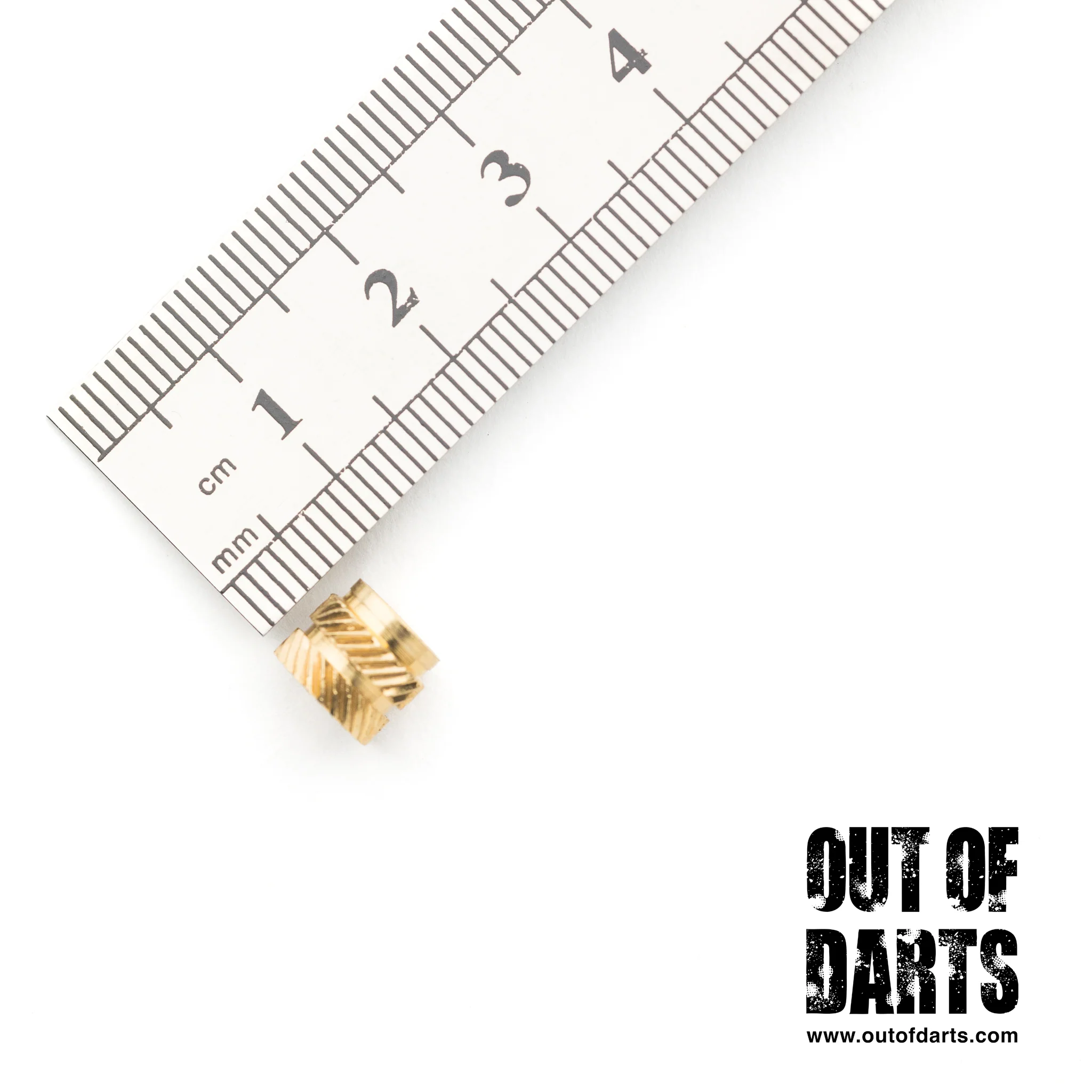

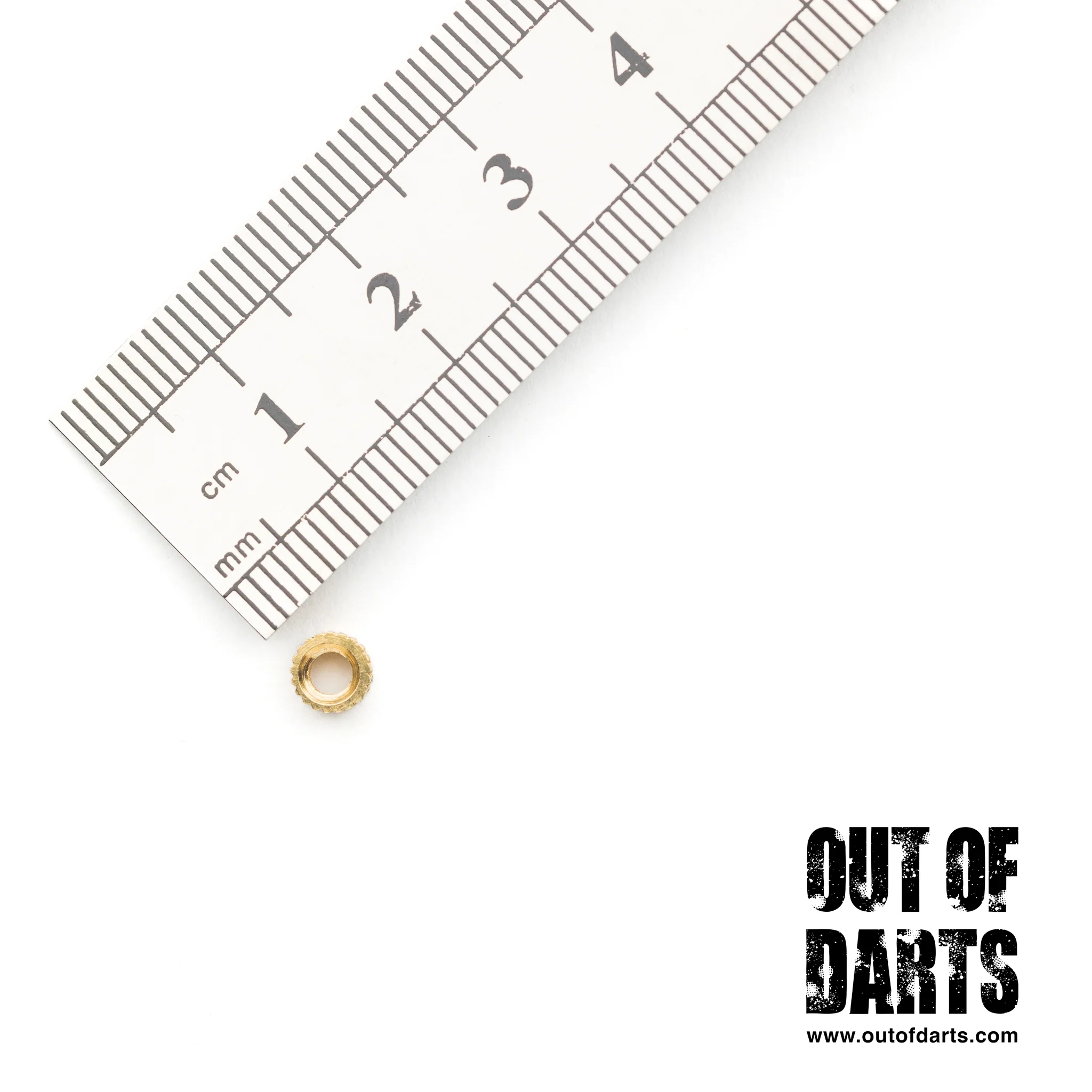

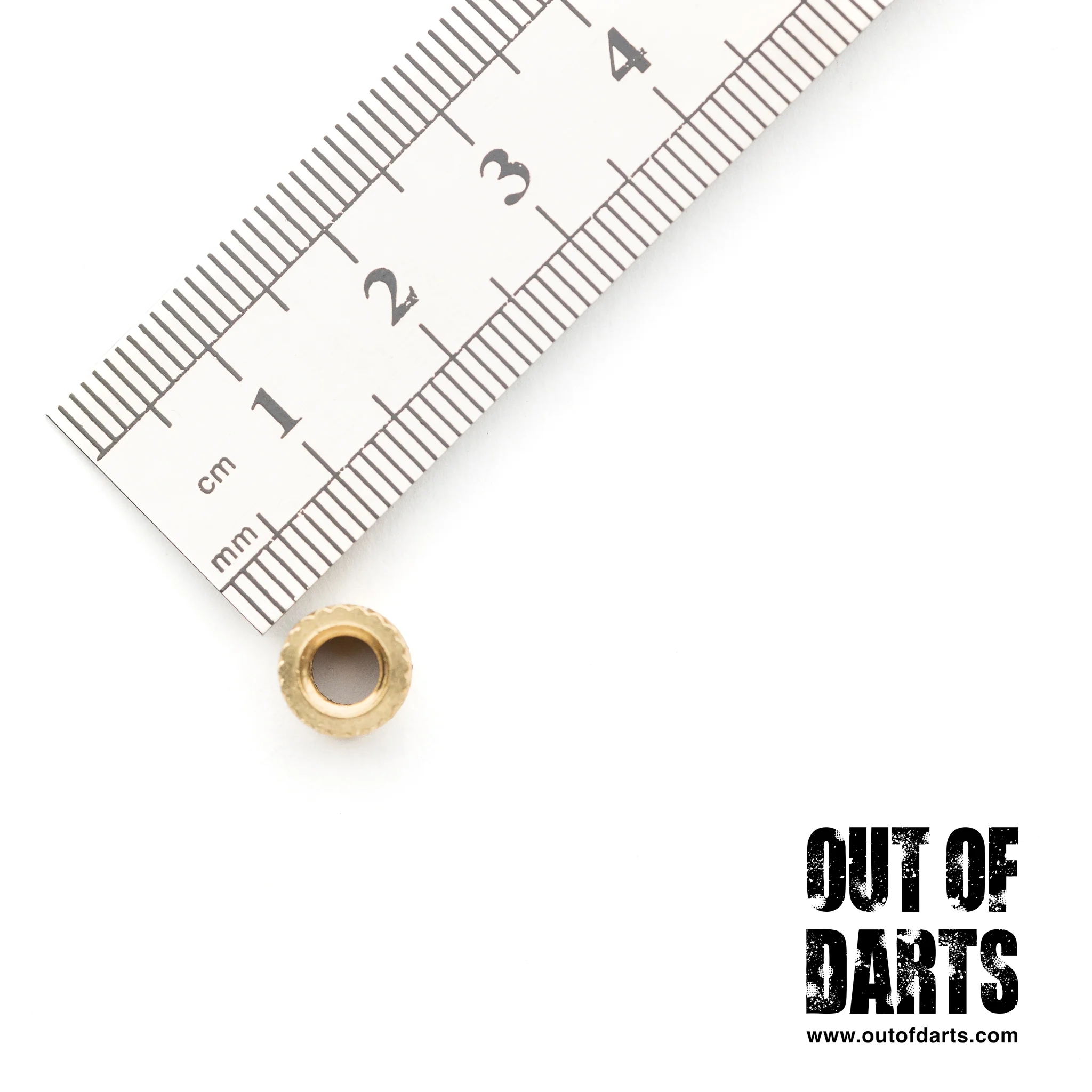

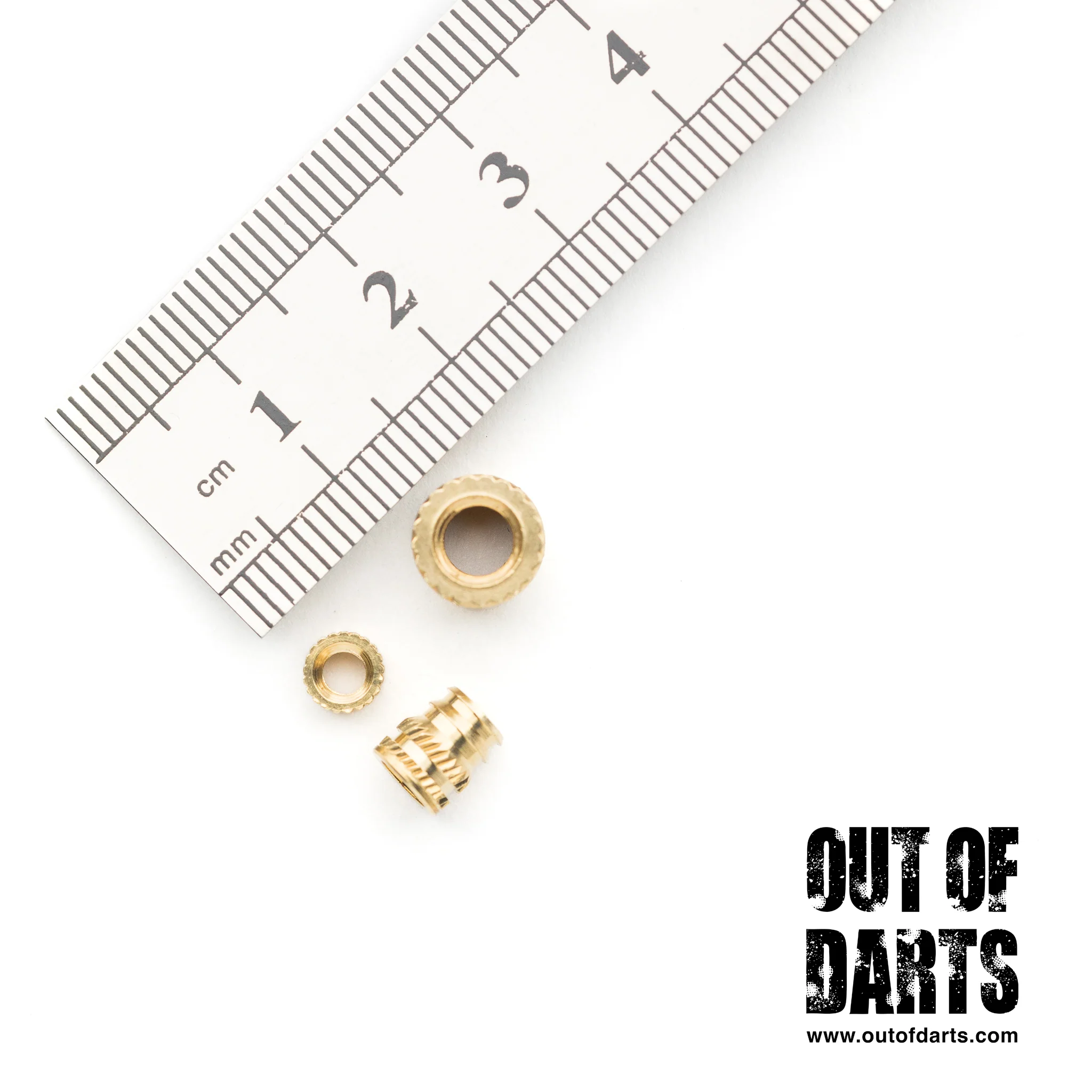

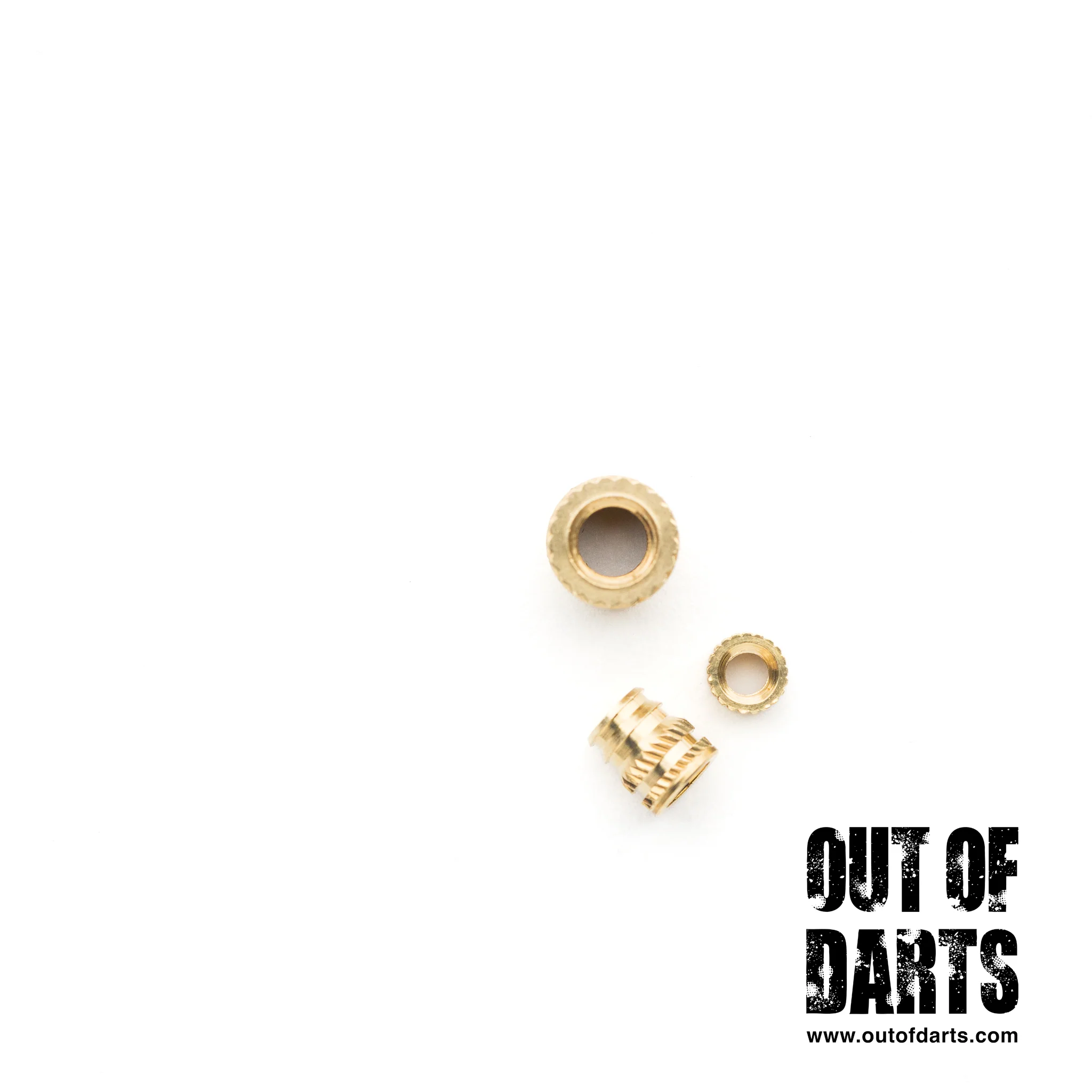

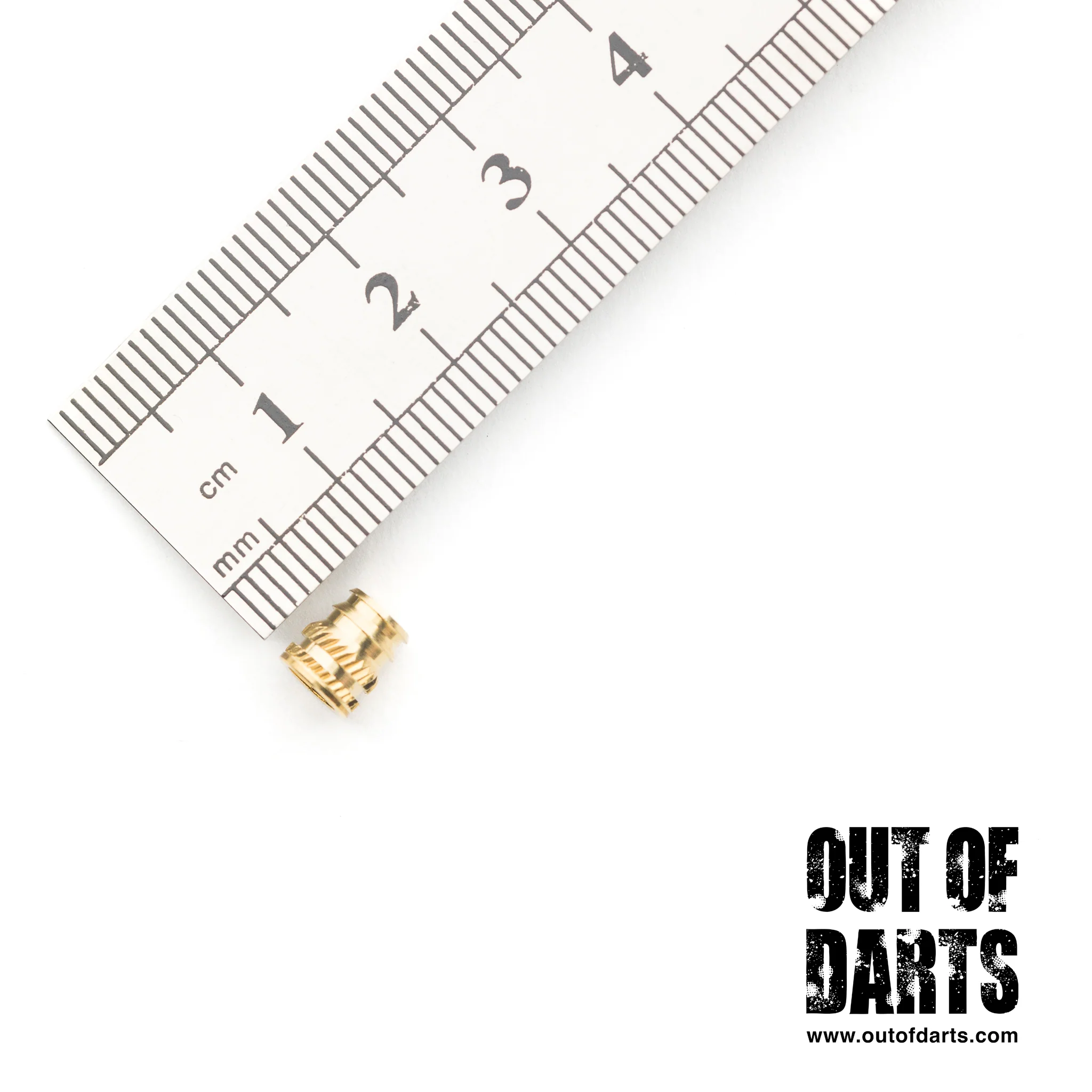

Brass Heat-Set Inserts for Plastic Parts (Multiple Sizes)
Brass Heat-Set Threaded Inserts are the gold standard for assembling and securing plastic parts together. When installed correctly, the serrated edges grab hold of the plastic that was locally melted around it and make for a reliable and repeatable threaded joint to screw into again and again. Available in the three most common sizes for 3D-printed blaster builds
FEATURES:
• Makes reliable, repeatable threaded joints
• Available in 3 common sizes
• Compatible with all 3D-printed cages

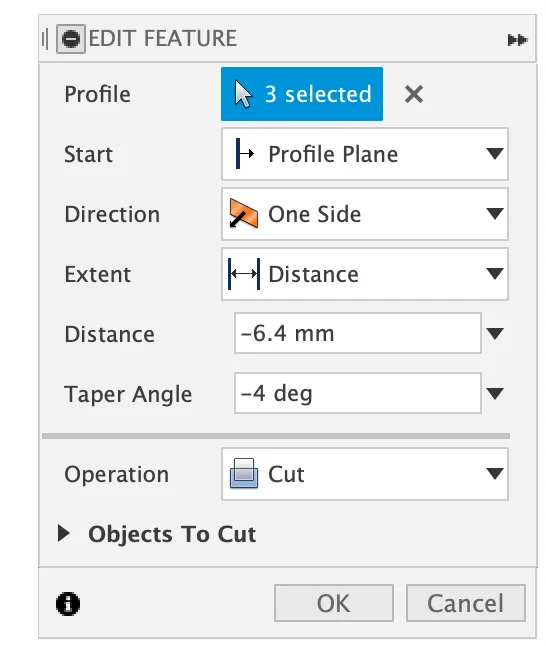

3D DESIGN NOTES: (see photos for more info)
• M3: 5.6mm hole diameter with a 4-degree taper
• M5: 7mm hole diameter with a 4-degree taper

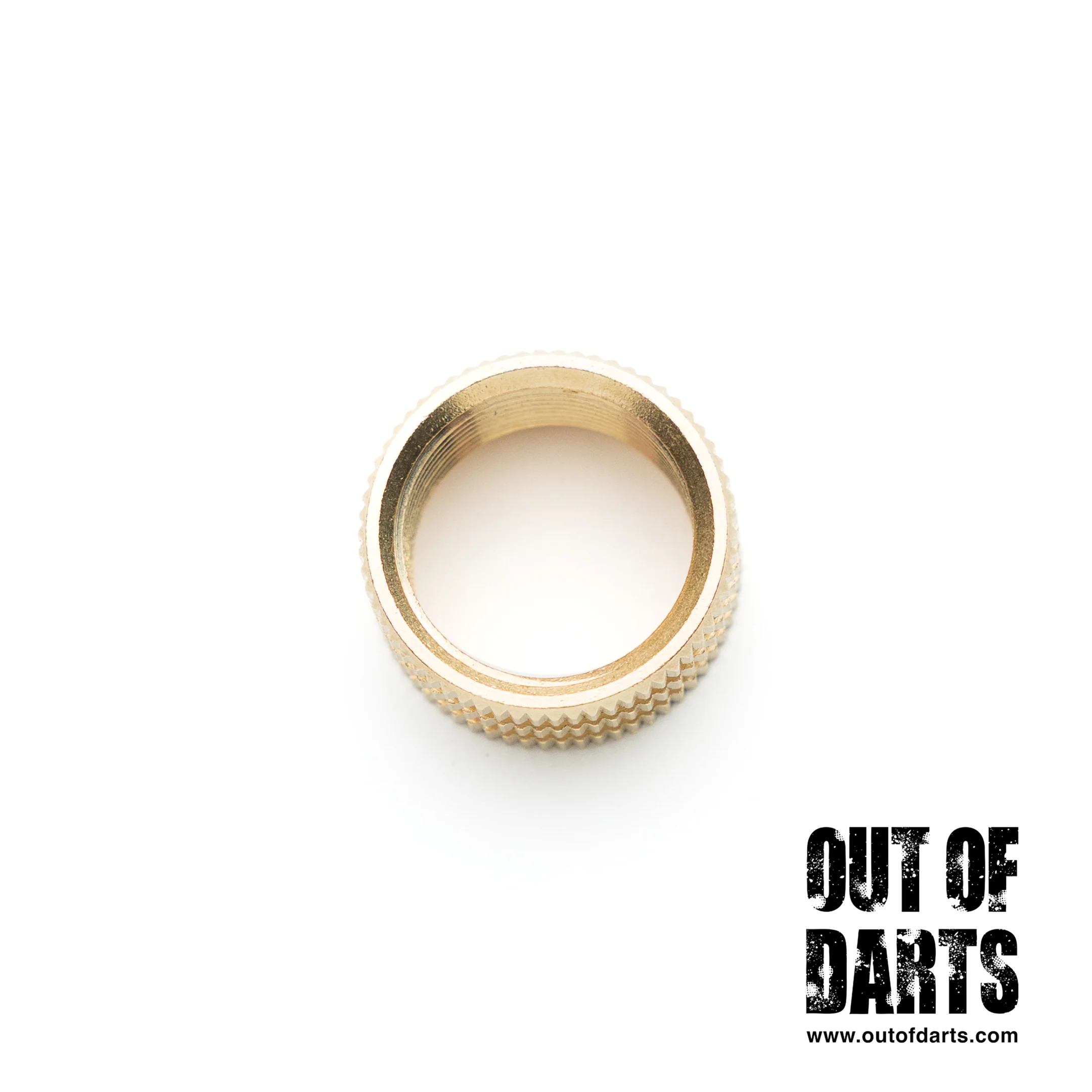

• M16: 20-20.5mm hole diameter with a 4-degree taper*
*This is our preliminary design note for threaded breech HSIs. More testing is needed.
SPECS:
• Material: brass
• Dimensions: varies
LINKS:
• Socket Head Machine Screws
• More Hardware
