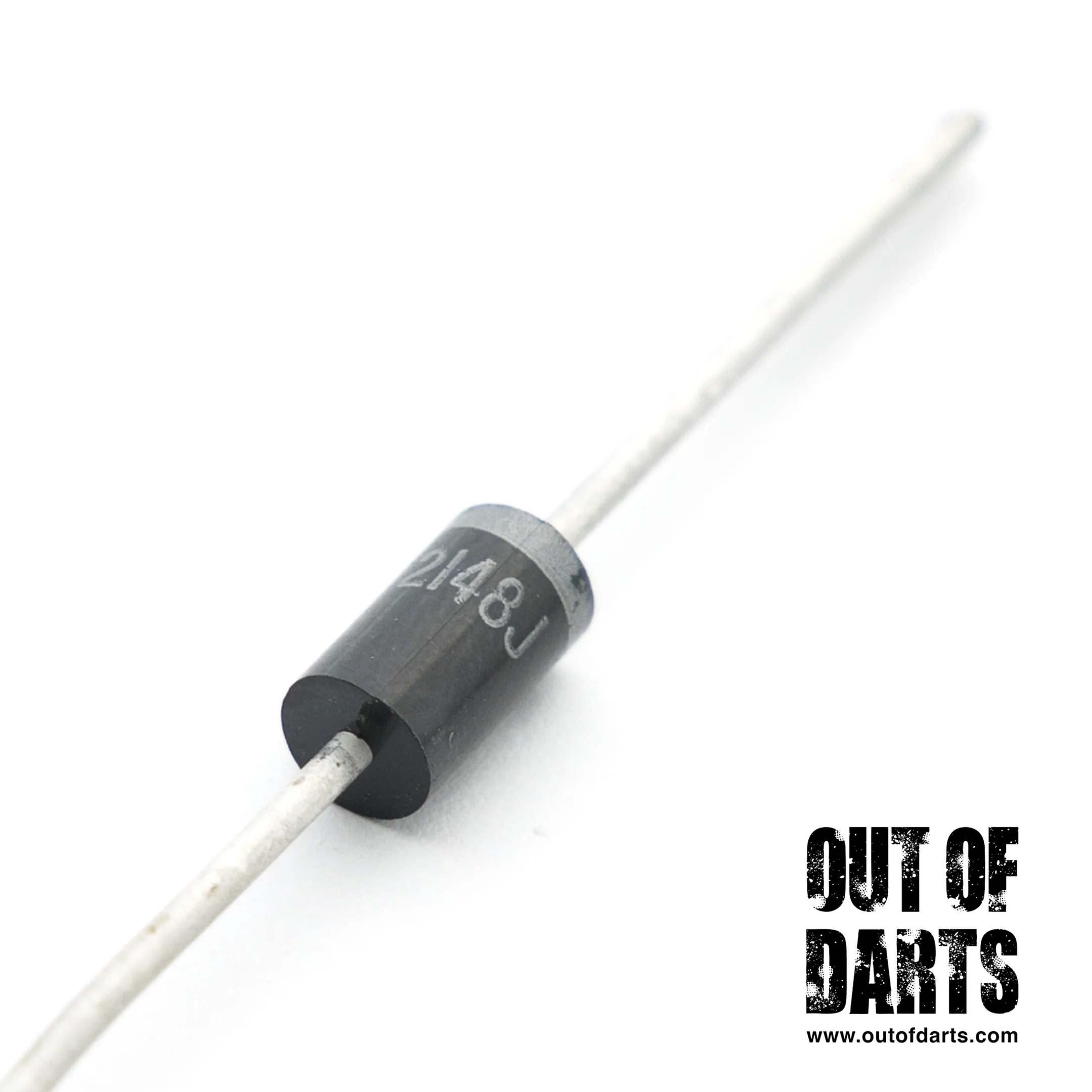

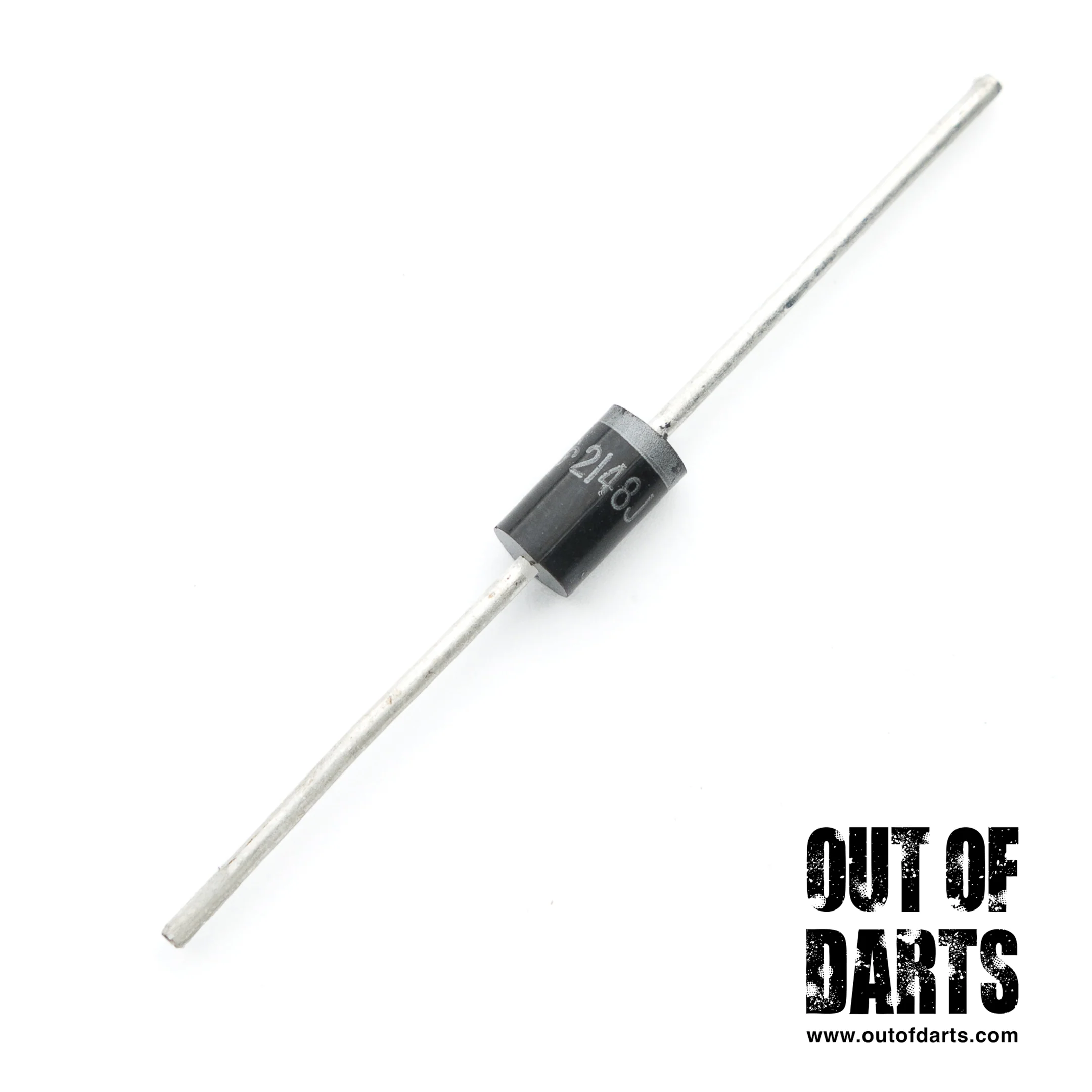

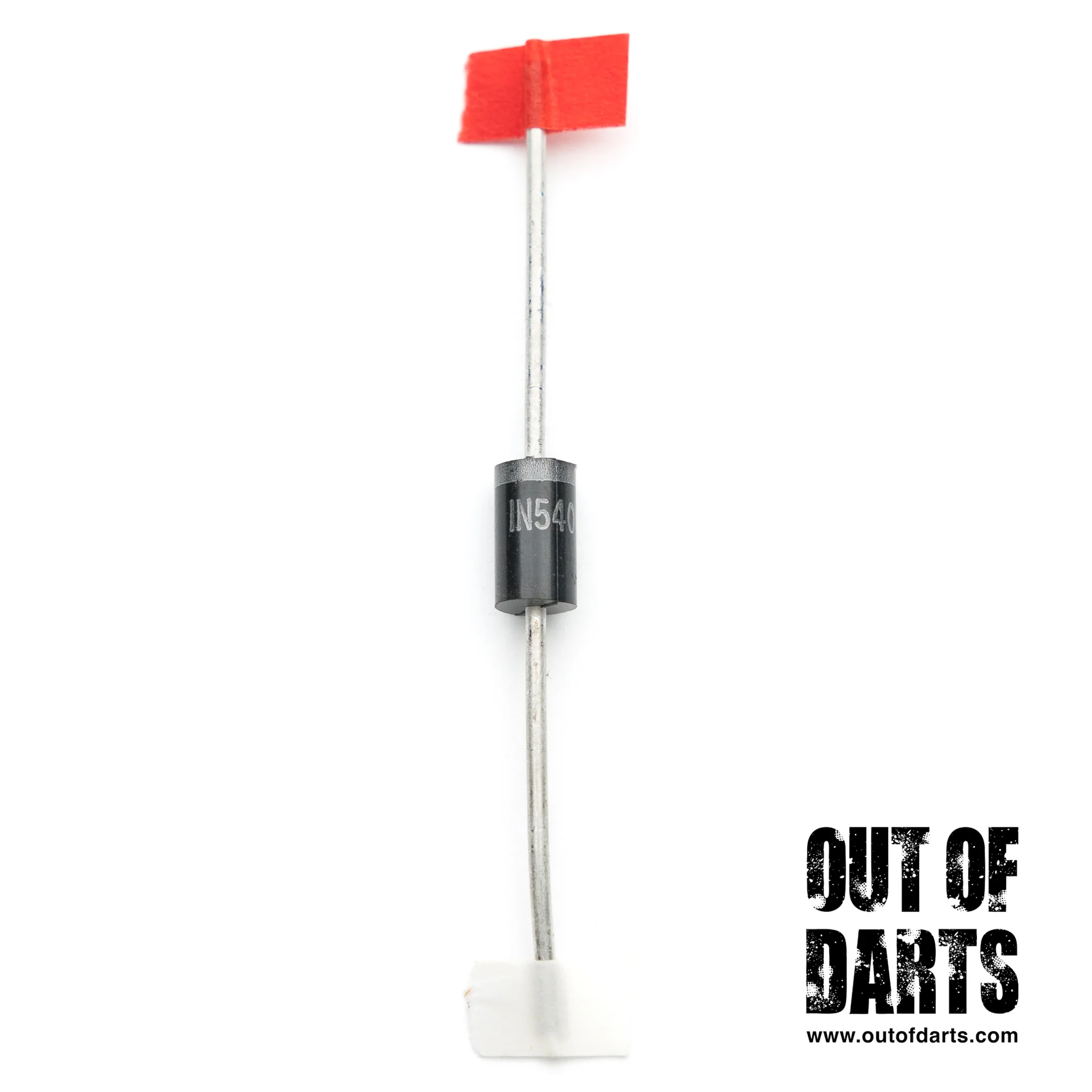

1N5400 Diode (For Solenoid + Full-Auto Builds)

The 1N5400 Diode is a basic general-purpose rectifier diode for circuit protection. In electronic blasters, this acts as a flyback or clamping diode, safely draining the circuit of excess voltage that could damage sensitive components. This is especially important in "smart" brushless flywheelers with solenoid pushers like Momentum, Spirit, and GNK-200.

FEATURES:
• 1N5400 Diode
• Rectifier flyback diode
• Basic circuit protection
• Disapates excess voltage from the solenoid
• Compatible with the Neutron Solenoid

INCLUDES:
• 1 1N5400 Diode

SPECS:
• Material:
• Peak Reverse Voltage (Vrrm): 50V
• Average Rectified Current (Io): 3.0A
• Max Reverse Current (Ir): 0.5mA
• Max Forward Voltage Drop (Vf): 1.2V

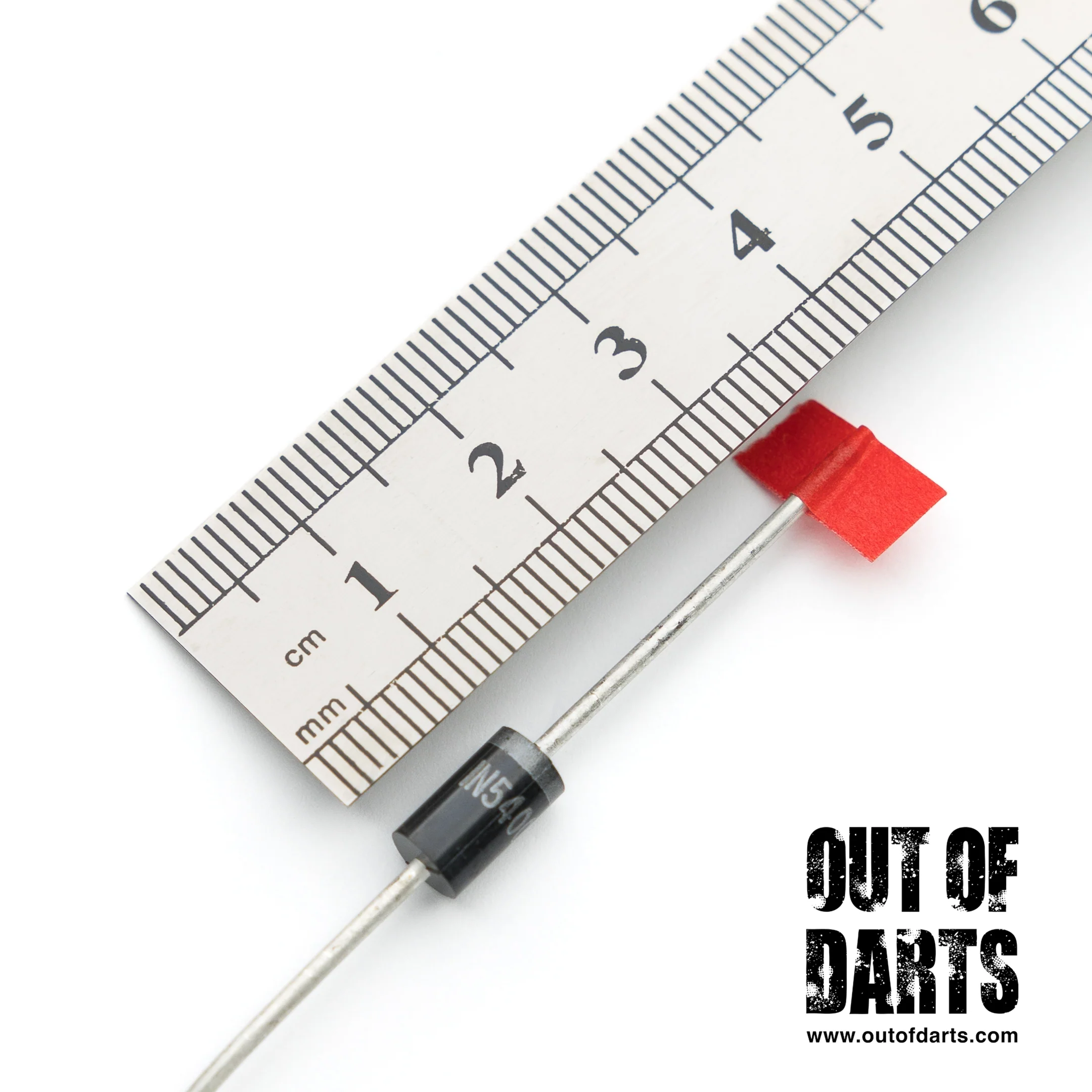

• Dimensions:
     Diameter: 5.3mm
     Length: 9.5mm
• Weight: 0.8g
• SKU: E02_2B;DIODE_1N5400
